New for 2023
We are happy to introduce our 3V bracket set to our line of DIY sheet metal hubs. This set of geodesic dome hubs include everything you need to make a flat-based 3V geodesic dome to whatever size you'd like. By using the following calculator our hubs allow you to scale the size of the dome to meet your design needs.
(The link to this calculator should have all the correct values already entered to end up with a 5 meter wide dome using 2x4s . The gap between struts should be "Pipe diameter, mm=107.95)
A 3V dome has about 5X the amount of struts than our 2V domes and as a result will provide you with a much stronger frame. We recommend keeping the struts shorter than 5ft. This will allow you do go as big as 8 meters wide or ~ 26ft in diameter. (Please note that you could go bigger if you like but you may need to add another set of hubs to the inside of the dome to reinforce the joints.
Each 3V kit will include a total of 61 brackets:
- (40X) - 6 way pcs
- (6X) - 5 way pcs
- (15X)- 4 way pcs
Our hubs are made up of 3/16" thick HRS Steel. The hubs come powder coated to be weather resistant and will withstand being exposed to the elements for years to come. Each hub is about 4" in diameter with 1.5" wide x 3" long tabs.

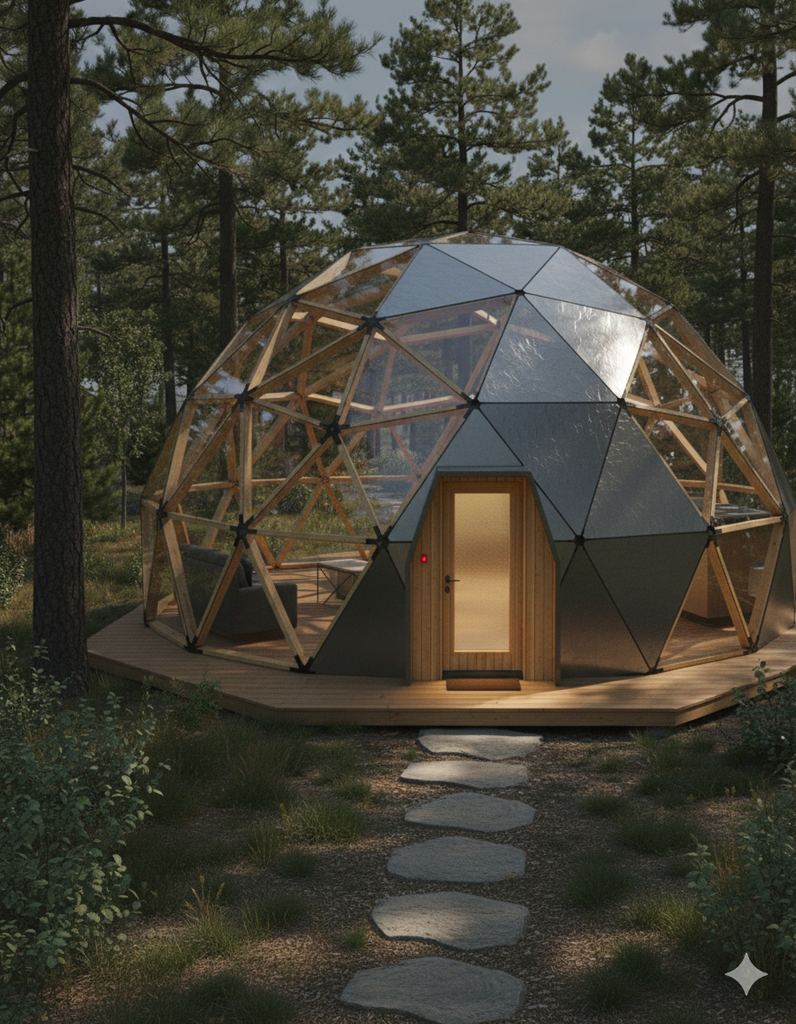

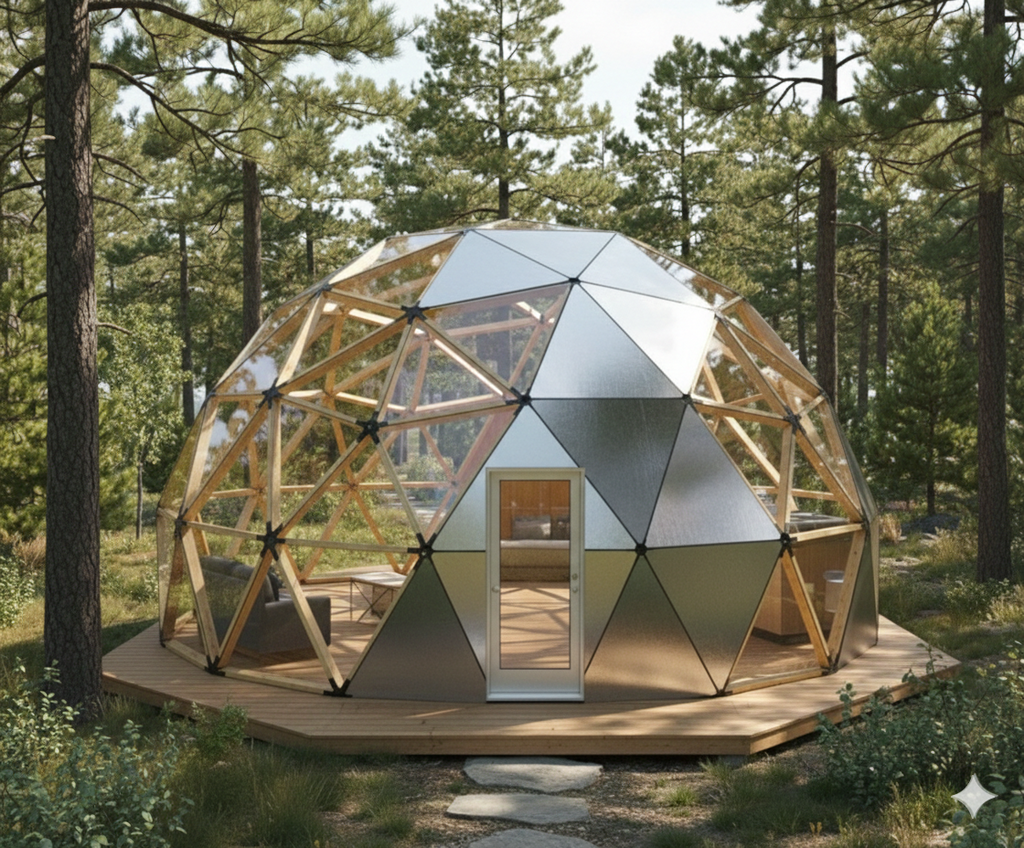

Timber domes are perfect for:

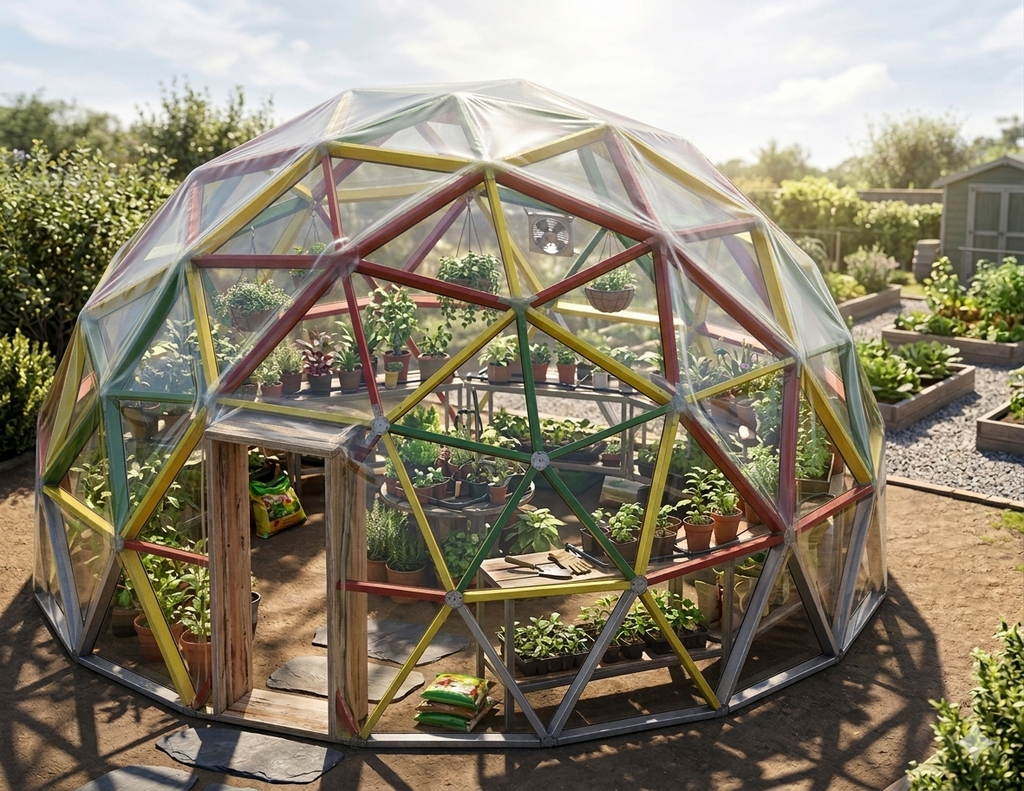

- Green Houses
- Upgrading from a steel tube frame
- Glamping Tents
- Rooftop Igloos
- Hammock Domes
- Beer Gardens
- Extra office
- (165) Pieces of lumber
- 2.5" Long Construction Screws
- Circular saw or hand saw
All of our hubs are designed and manufactured in Chicago Il, USA
